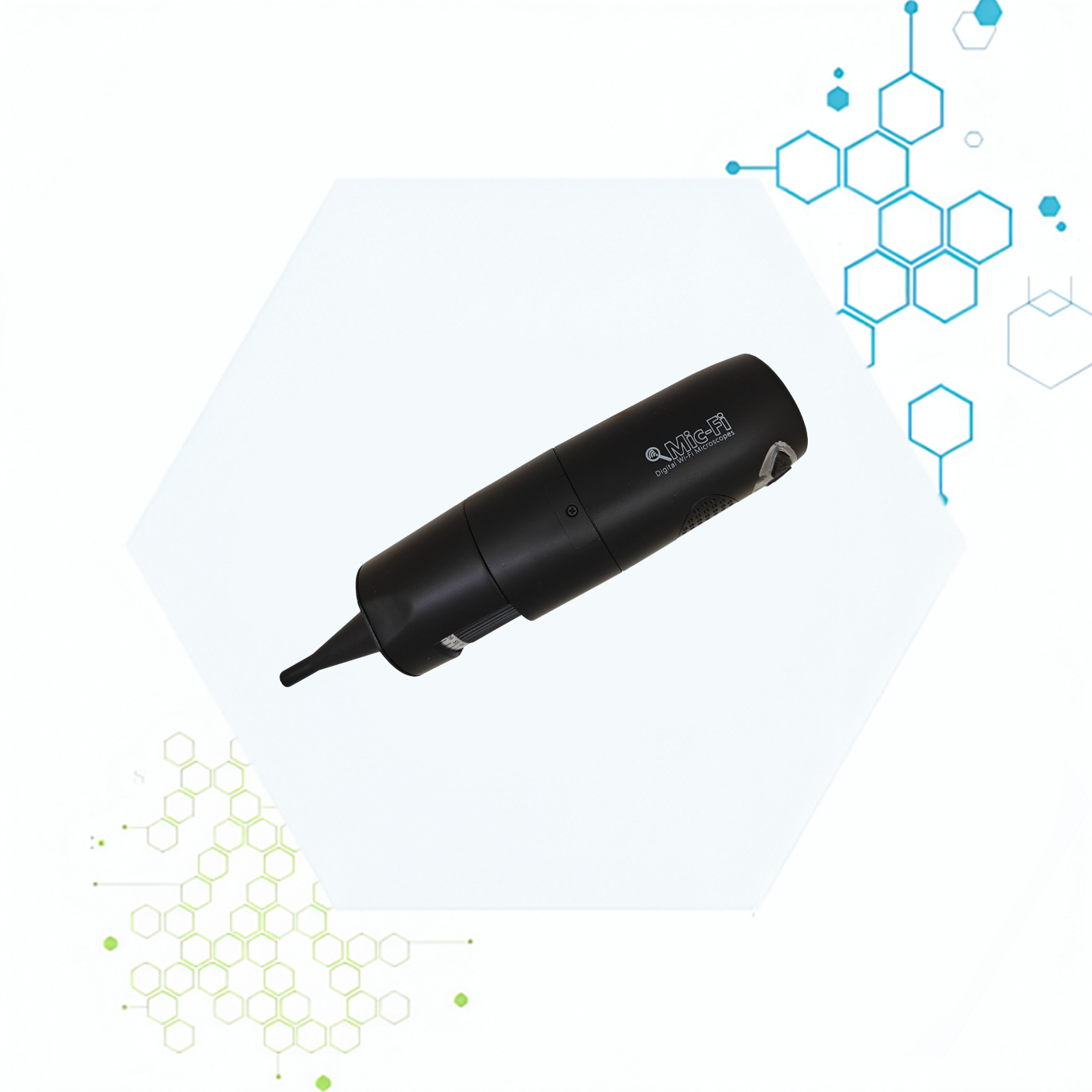

• Mic-Fi digital WiFi veterinary otoscope

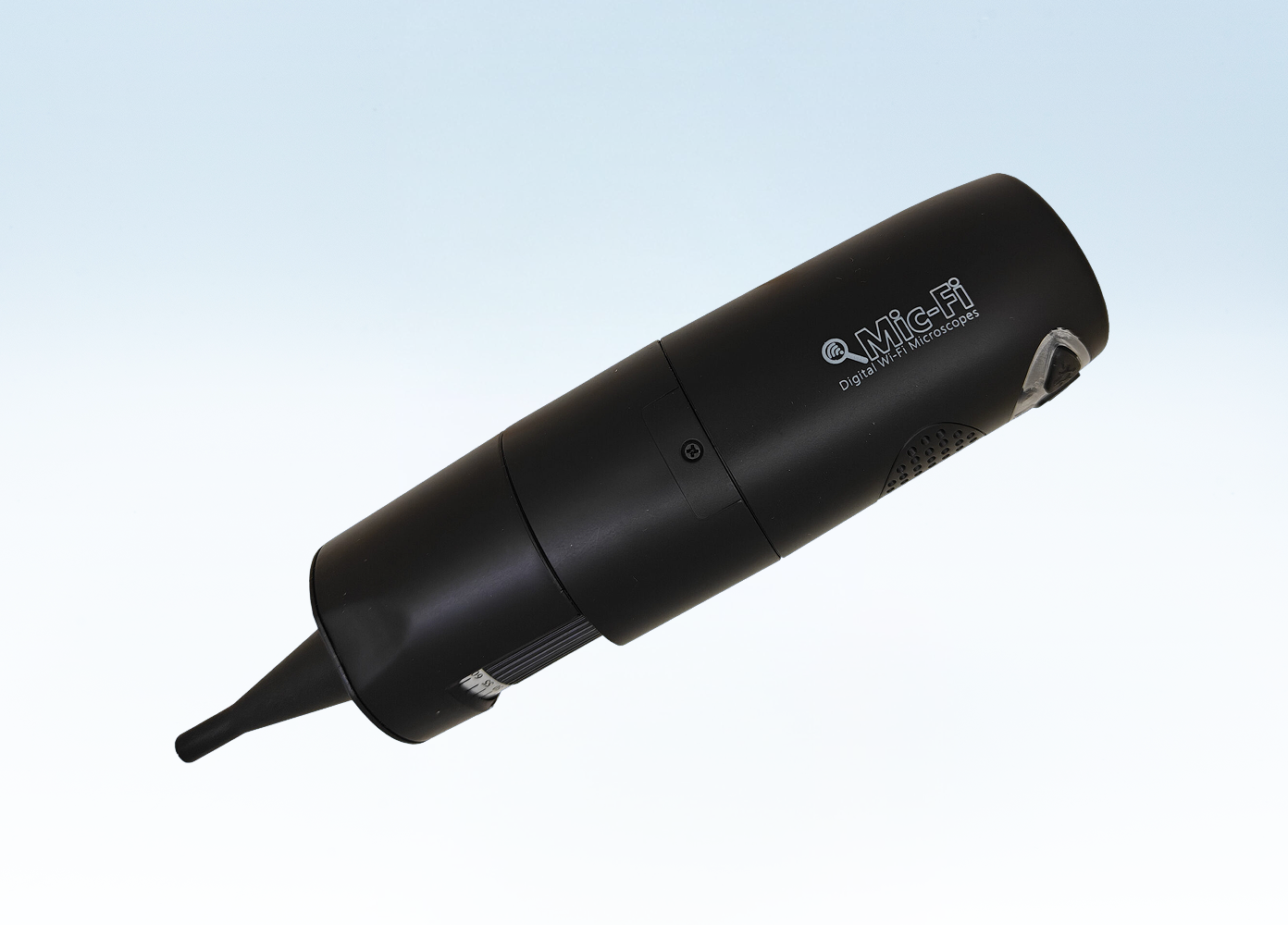

  • Digital WiFi veterinary otoscope ear examination

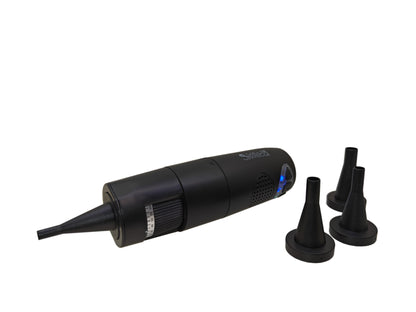

  • Digital WiFi otoscope with ear tips

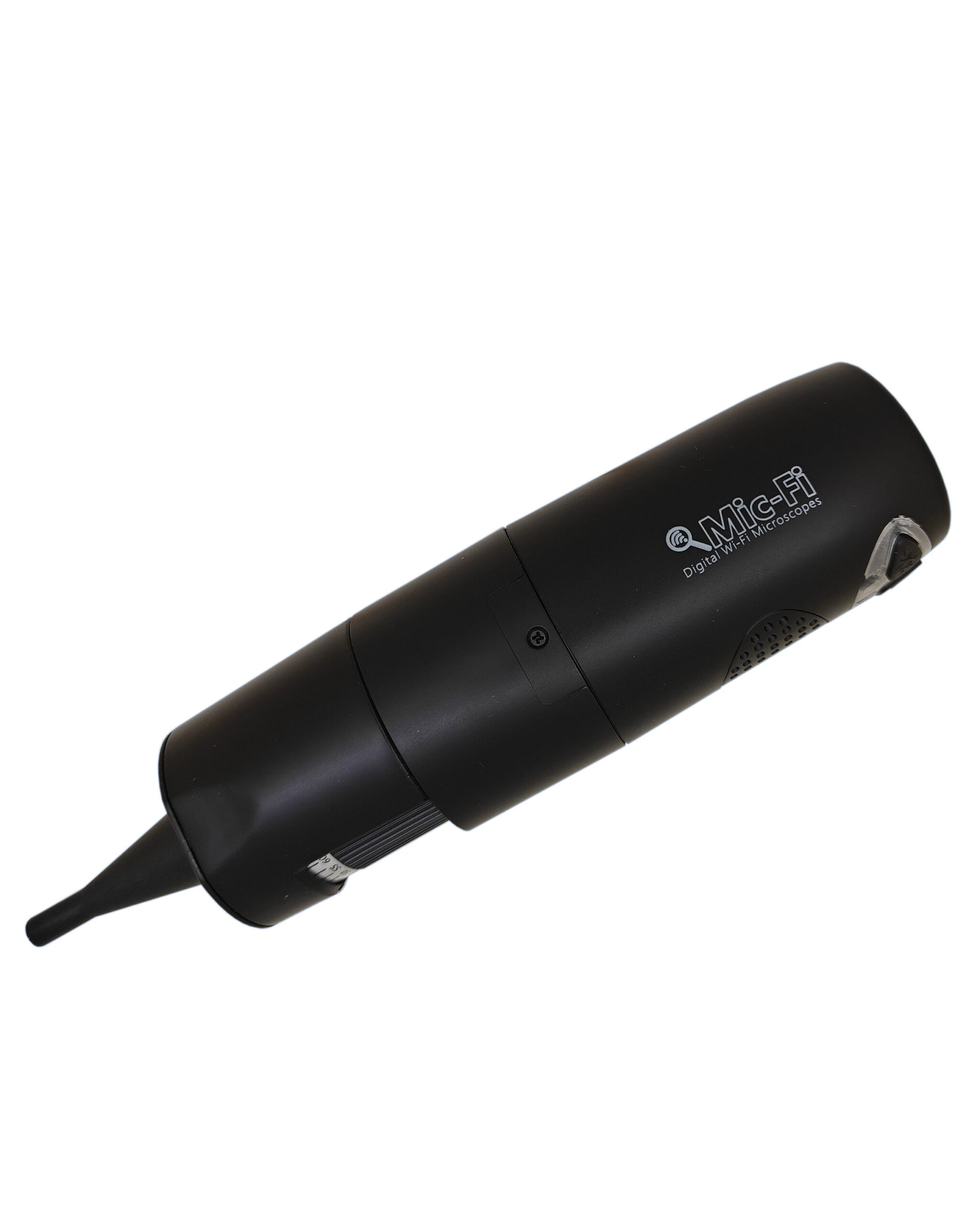

  • Digital WiFi otoscope veterinary ear camera

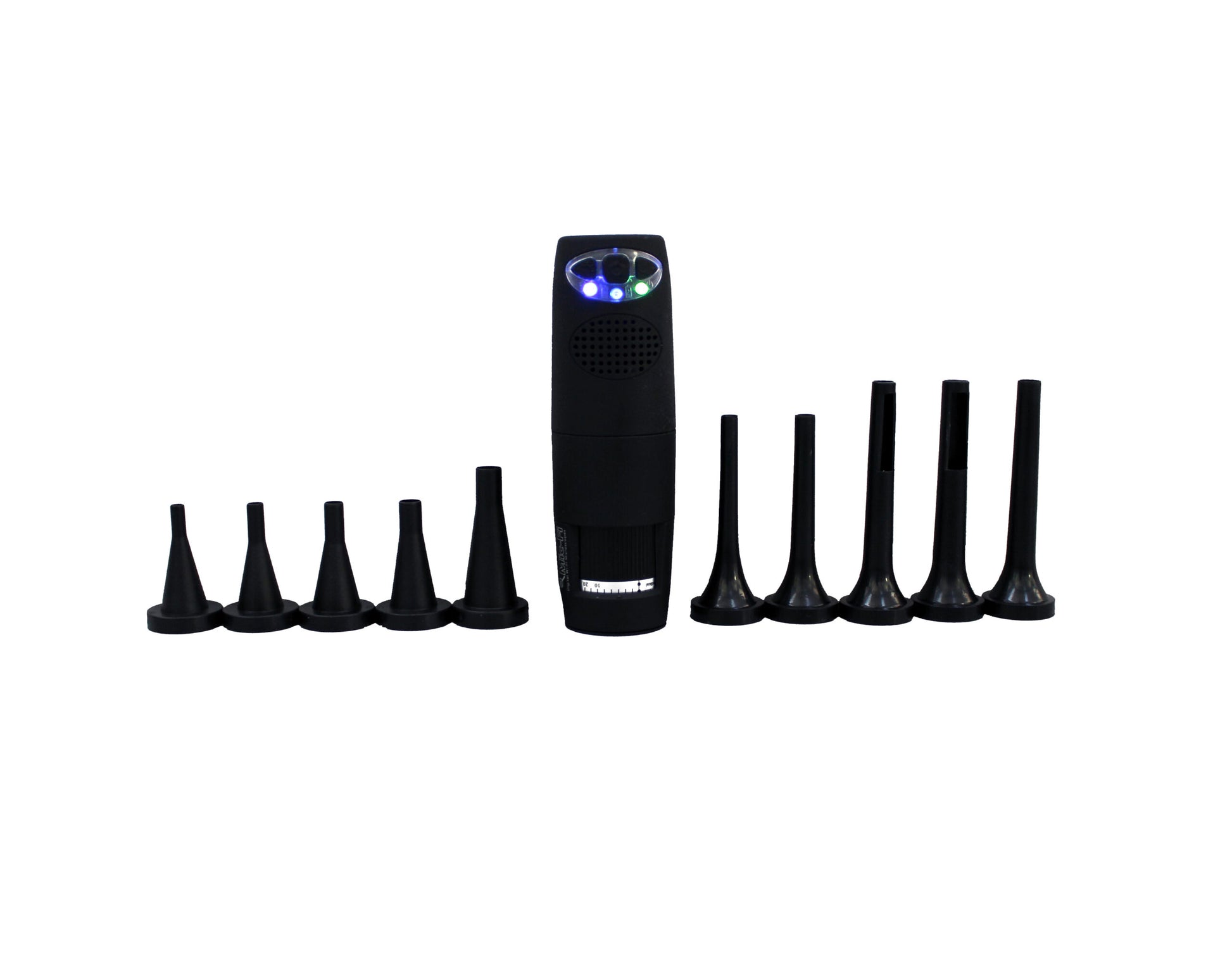

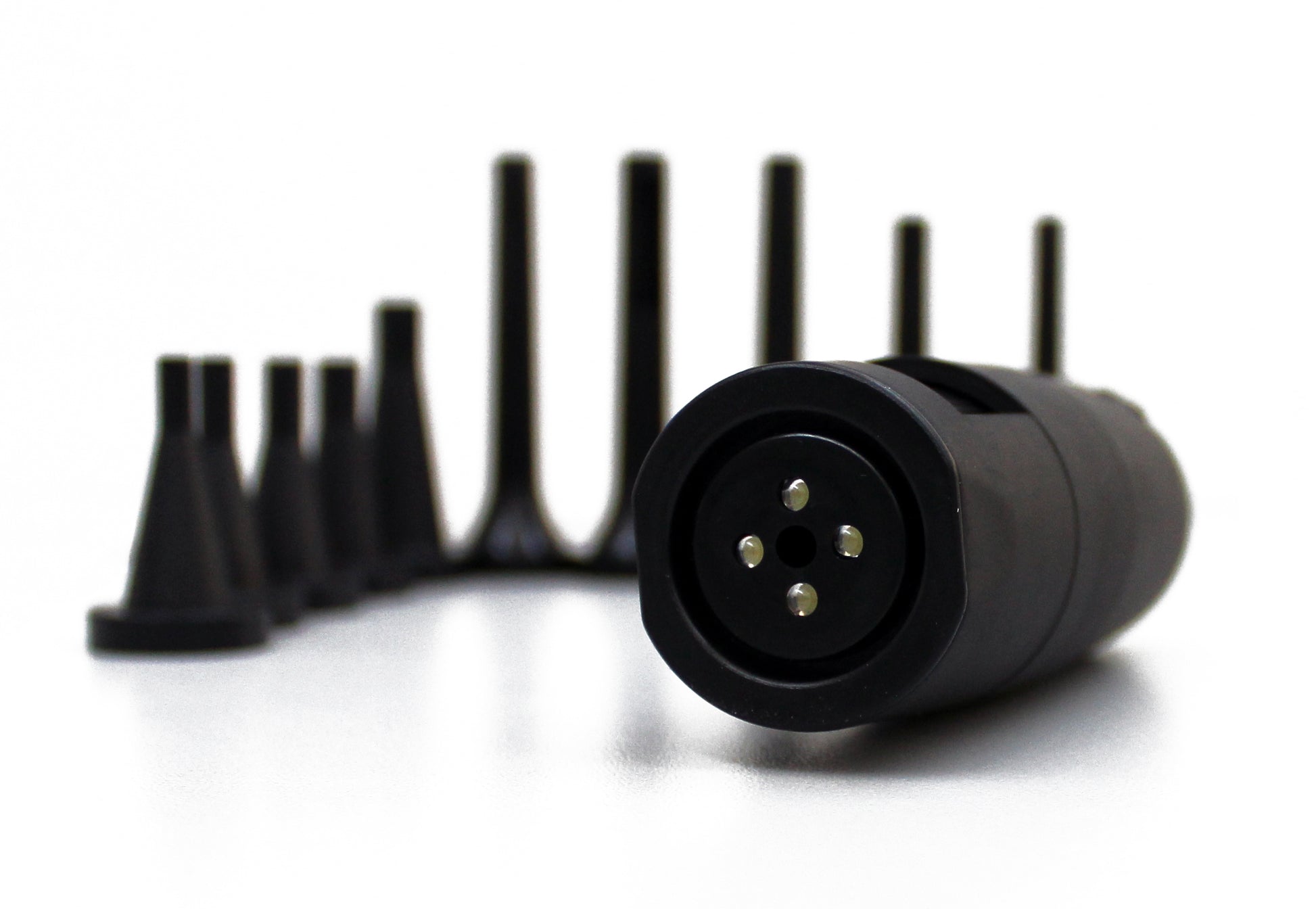

  • Otoscope specula tips veterinary diagnostic tool

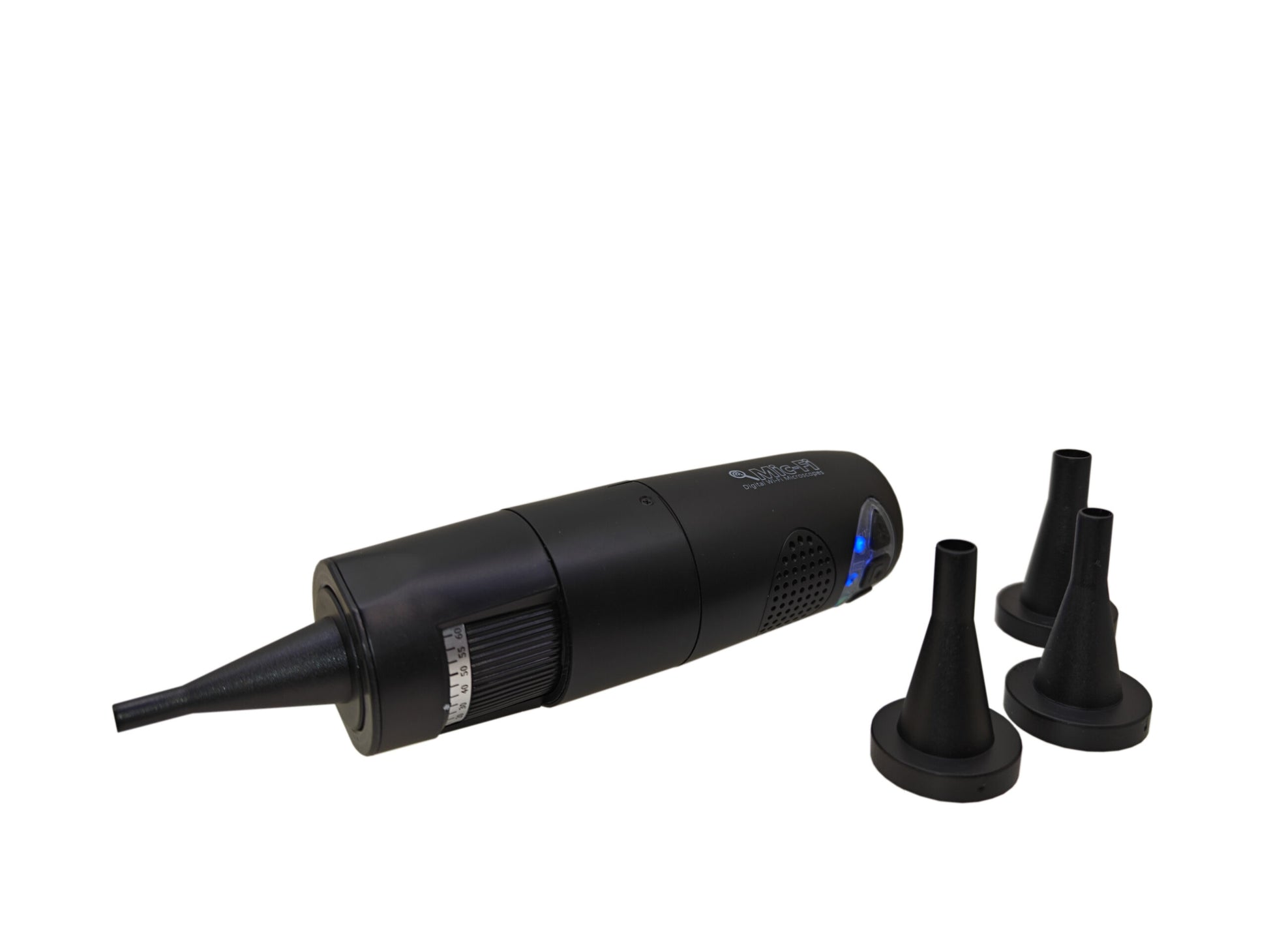

  • Veterinary otoscope with diagnostic specula tips

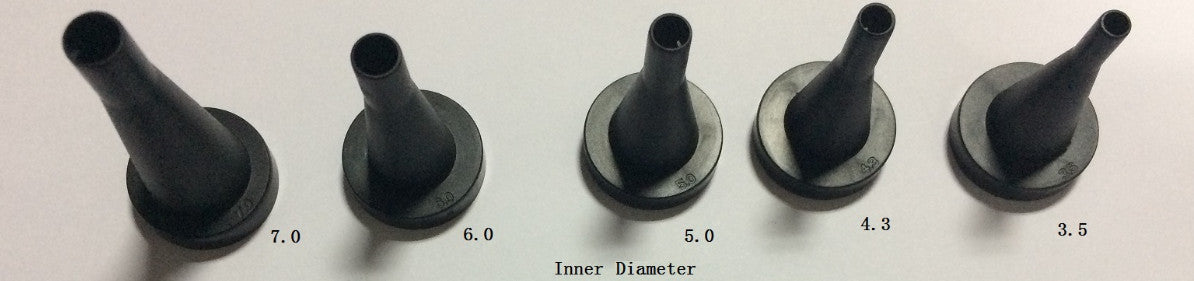

  • Medical otoscope specula diameter options
1 7

Wi-Fi – USB Digital OTOSCOPE

Wi-Fi – USB Digital OTOSCOPE

SKU:AE-OTO

AE-OTO is a very innovative handheld color digital OTOSCOPE with Wi-Fi or USB transmission.
Magnification 25x~50x

Download Brochure

Feature Details
Magnification 25x~50x
Object Distance 1~160mm
Focus Range 8mm ~ 160mm
LED 4 white LEDs adjustable
Lens High Definition Microscopy Lens
Dimensions 36mm x 142mm
Weight 88g
02 : 07 : 48 : 10
Days   Hours   Mins   Sec
Notify Me View full details
  • Analytics dashboard icon

    USB Features

    • Photo and Video Resolution: 1.3Mpixel — 1280x1024, 640x480, 320x240

    • Frame Rate: 15fps (1280x1024), 30fps (640x480), 320x240

    • Image Format: .bmp, .jpg

    • PC Interface: USB 2.0

    • Mini USB Cable: 1.2m

  • Website photo gallery icon

    Camera Features

    • Camera:Color CMOS Camera

    • Sensor: 1/4" CMOS

    • Optic:

      Exposure: auto

      Gamma: auto

      White balance: auto

      Reference: auto

  • Product collection menu icon

    Software & App

    • SOFTWARE

    Mic-Fi per Windows and MAC

    • APP

    Mic-Fi Medical per iOS Tablet

    Mic-Fi per iOS Smartphone

    Mic-Fi Med Plus per Android Tablet & Smartphone

  • Secure packaging for veterinary equipment icon

    PACKAGE

    • n. 1 Mic-Fi Otoscope with USB cable

    • n. 1 USB AC Adapter 5.0V/1A

    • n. 1 quick guide

    • Set of speculum

    • n. 1 PEN DRIVE with user manual and software per Windows and MAC

Accessories

x
Wireless veterinary otoscope inspection device

General Features

Feature & Details
Operating System: Windows, OS X, iOS, Android
Battery: Li-ion, Continuous working time appx. 2 hour
Charger: DC5.0V/1APlease use ONLY USB wall adaptors that arecertified according to CE and/or FCC regulations
Device class according to EN 60601-1:2006+A1:2012: Class II
Applied parts according to EN 60601-1:2006+A1:2012: Type B
Degree of protection (EN 60529:1991+A2:2013): IP40 (casing protected against solids larger than 1mmand against access by a wire, but not protectedagainst the ingress of liquids)
Mode of Work: Continuous
