Wi-Fi – USB Digital DERMATOSCOPE

Wi-Fi – USB Digital DERMATOSCOPE

SKU:AE-DERMA

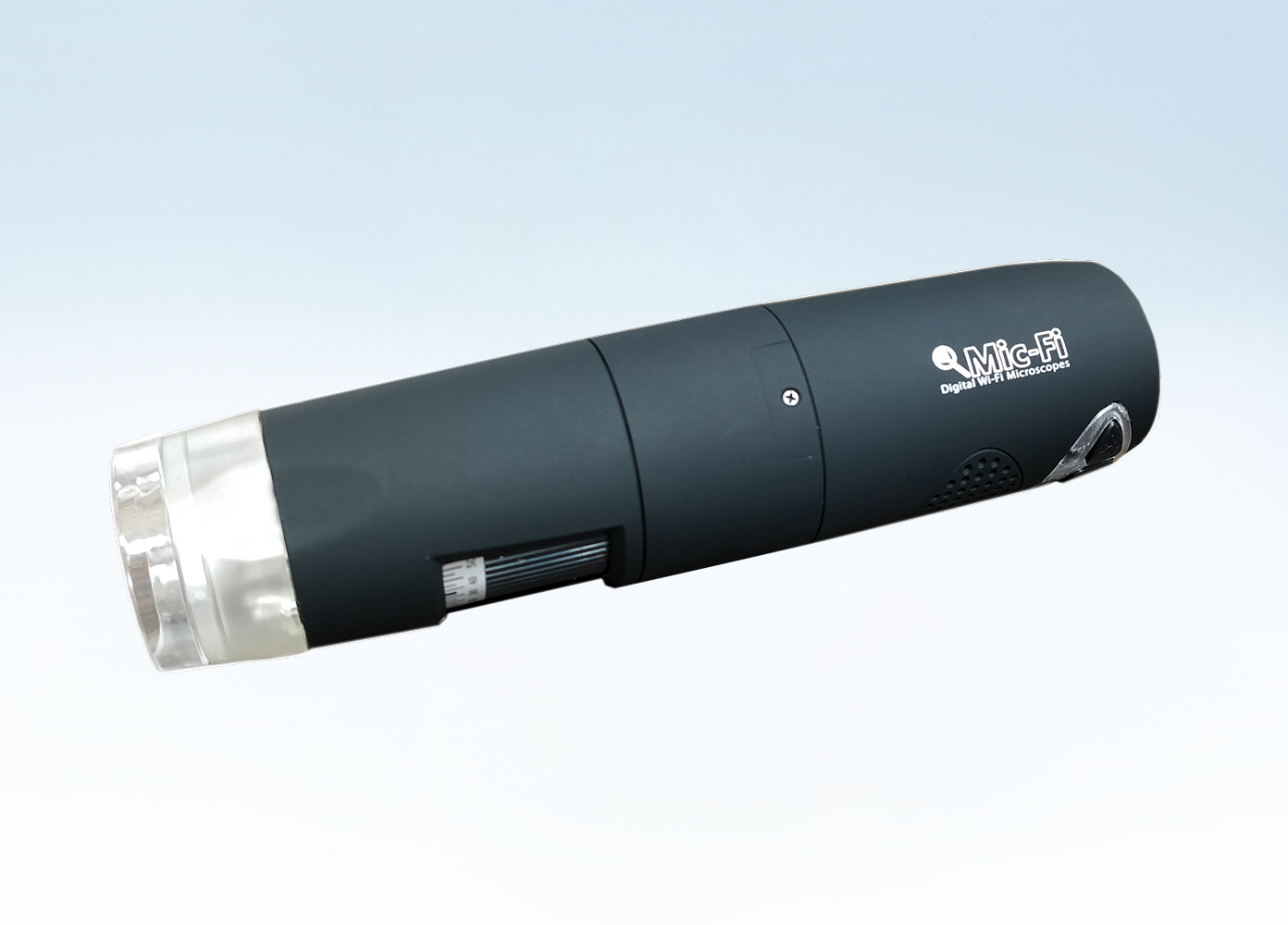

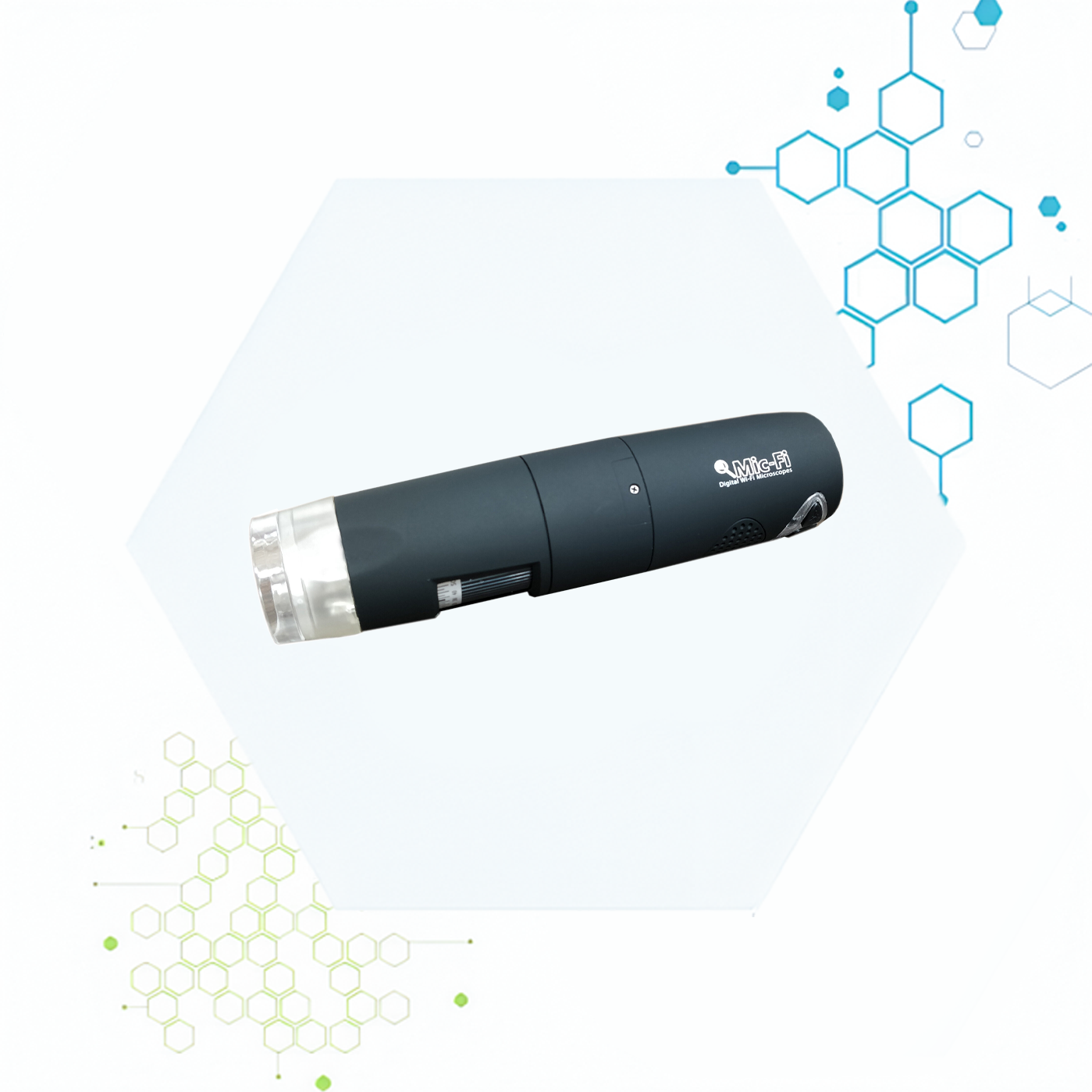

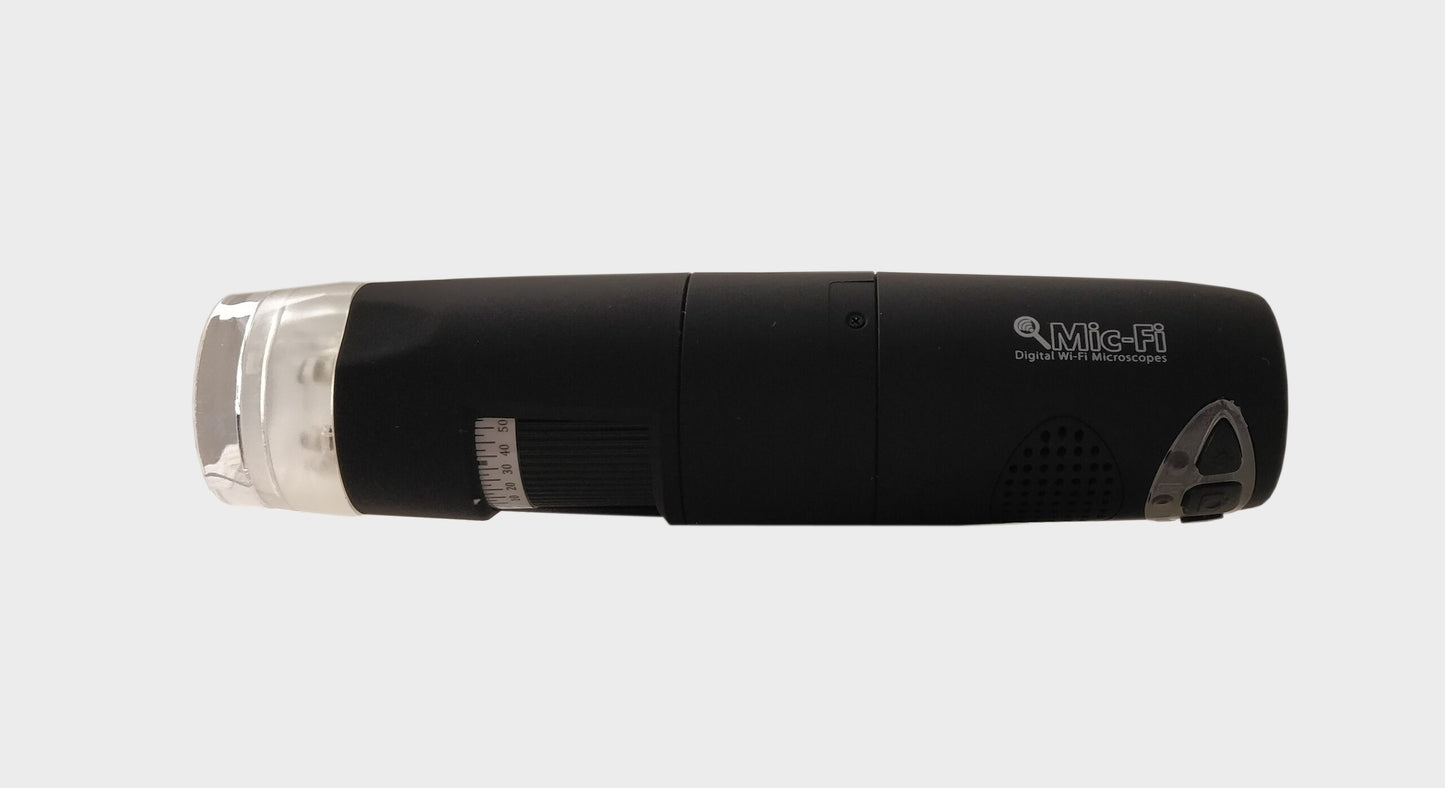

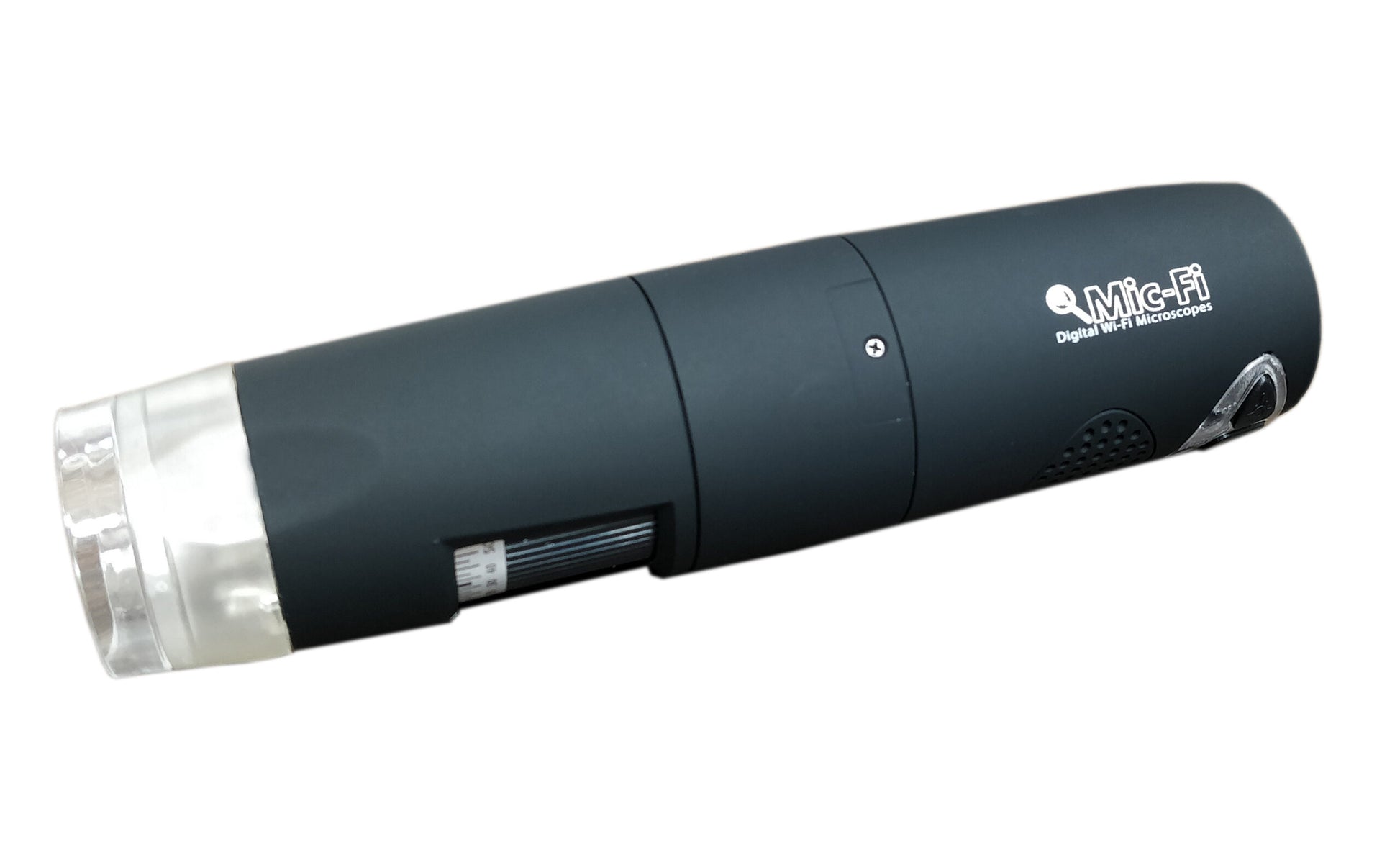

AE-DERMA is a very innovative handheld color digital DERMATOSCOPE with USB & Wi-Fi transmission. It is a small, easy to operate light and portable.
Magnification 10x~90x; 140x~220x

Download Brochure

Feature Details
Magnification 10x~90x; 140x~220x
Object Distance 8÷200mm
Focus Range 8÷200mm

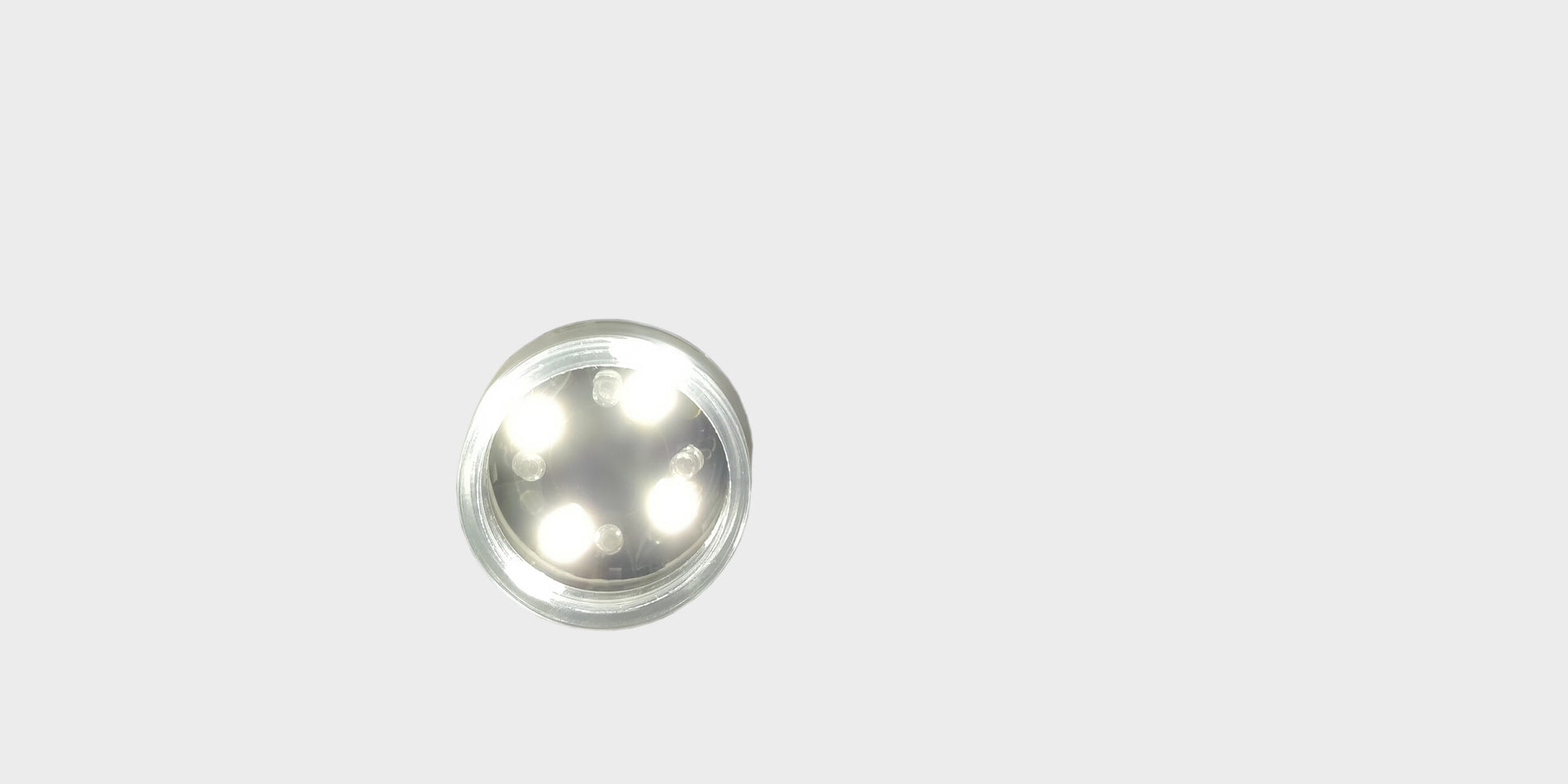

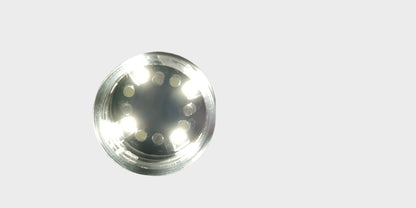

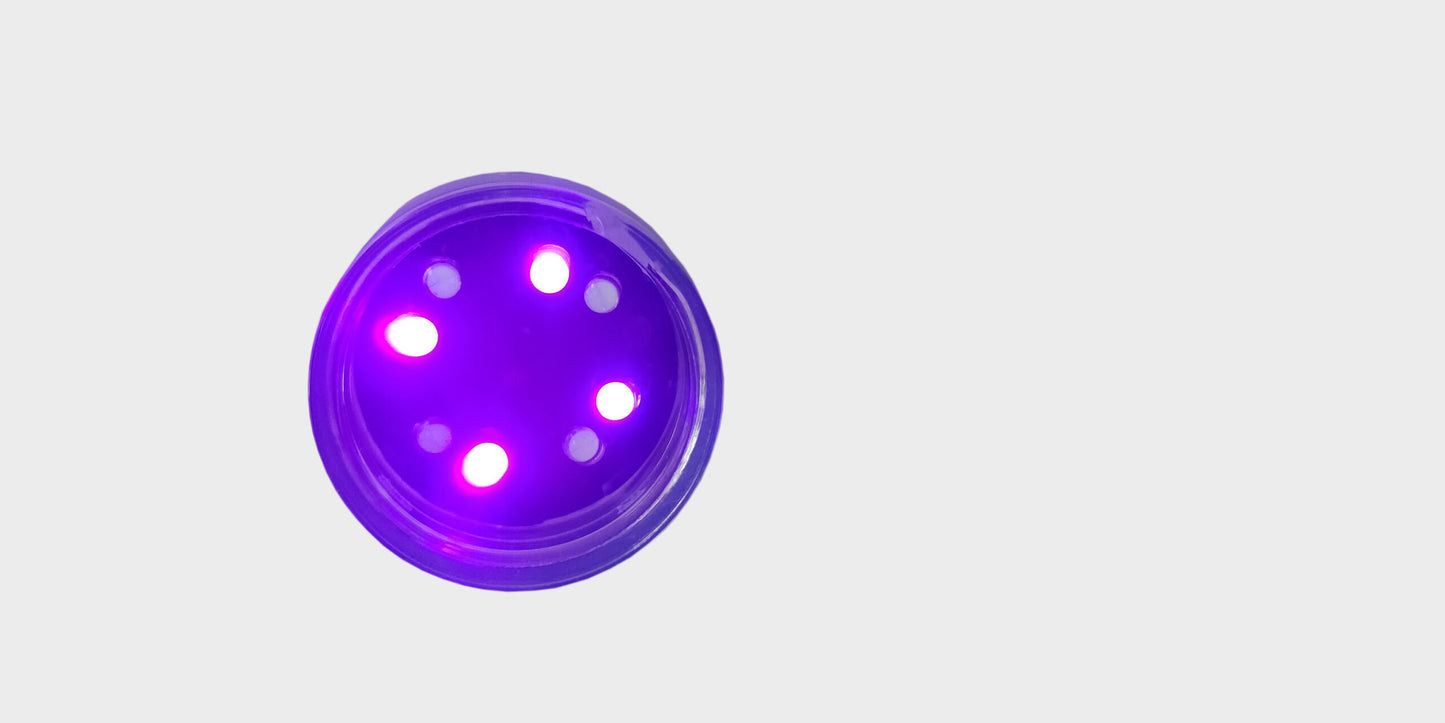

LED 4 White leds + 4 UV leds 400nm + 4 Polarised leds adjustable
Lens High Definition Microscopy Lens
Dimensions 36mm x 142mm
Weight 88g
41 : 04 : 45 : 10
Days   Hours   Mins   Sec
Notify Me View full details
  • Analytics dashboard icon

    USB Features

    • Photo and Video Resolution: 1.3Mpixel — 1280x1024, 640x480, 320x240

    • Frame Rate:15fps (1280x1024), 30fps(640x480), 320x240

    • Image Format: .bmp, .jpg

    • PC Interface: USB 2.0

    • Mini USB Cable: 1.2m

  • Website photo gallery icon

    Camera Features

    • Camera:Color CMOS Camera

    • Sensor:1/4" CMOS

    • Optic:
    Exposure: auto
    Gamma: auto
    White balance: auto
    Reference: auto

  • Product collection menu icon

    Software & App

    • SOFTWARE

    Mic-Fi per Windows and MAC

    • APP

    Mic-Fi Medical per iOS Tablet

    Mic-Fi per iOS Smartphone

    Mic-Fi Med Plus per Android Tablet & Smartphone

  • Secure packaging for veterinary equipment icon

    PACKAGE

    • n. 1 Mic-Fi Dermatoscope with USB cable,

    • n. 1 USB AC Adapter 5.0V/1A,

    • n. 1 quick guide,

    • n. 1 Ruler,

    • n. 1 MICFICL30 tube,

    • n. 1 MICFICLOSEDCAP cover,

    • n. 1 PEN DRIVE with user manual and software per Windows and MAC

Accessories

x
Portable QMic-Fi wireless digital microscope

General Features

Feature & Details
Operating System: Windows, OS X, IOS, Android
Battery: Li-ion, Continuous working time approx. 2 hours
Wall Adaptor: DC5.0V/1APlease use ONLY usb wall adaptors that are certified according the CE and/or FCC regulations
Device class according to EN 60601-1:2006+A1:2012: Class II
Applied parts according to EN 60601-1:2006+A1:2012: Type B
Degree of protection (EN 60529:1991+A2:2013): IP40 (casing protected against solids larger than 1mm and against access by a wire, but not protected against the ingress of liquids)
Mode of Work: Continuous
