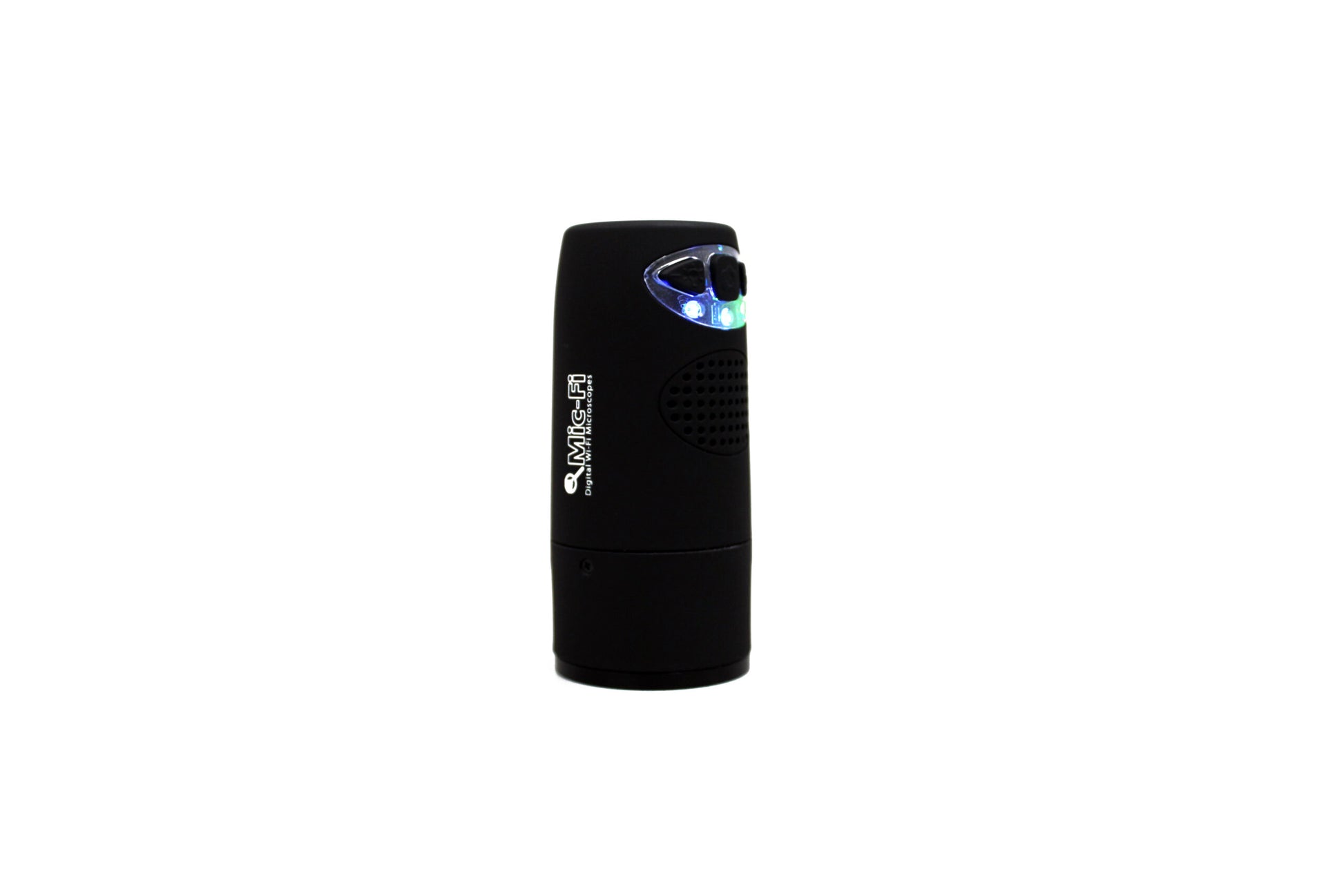

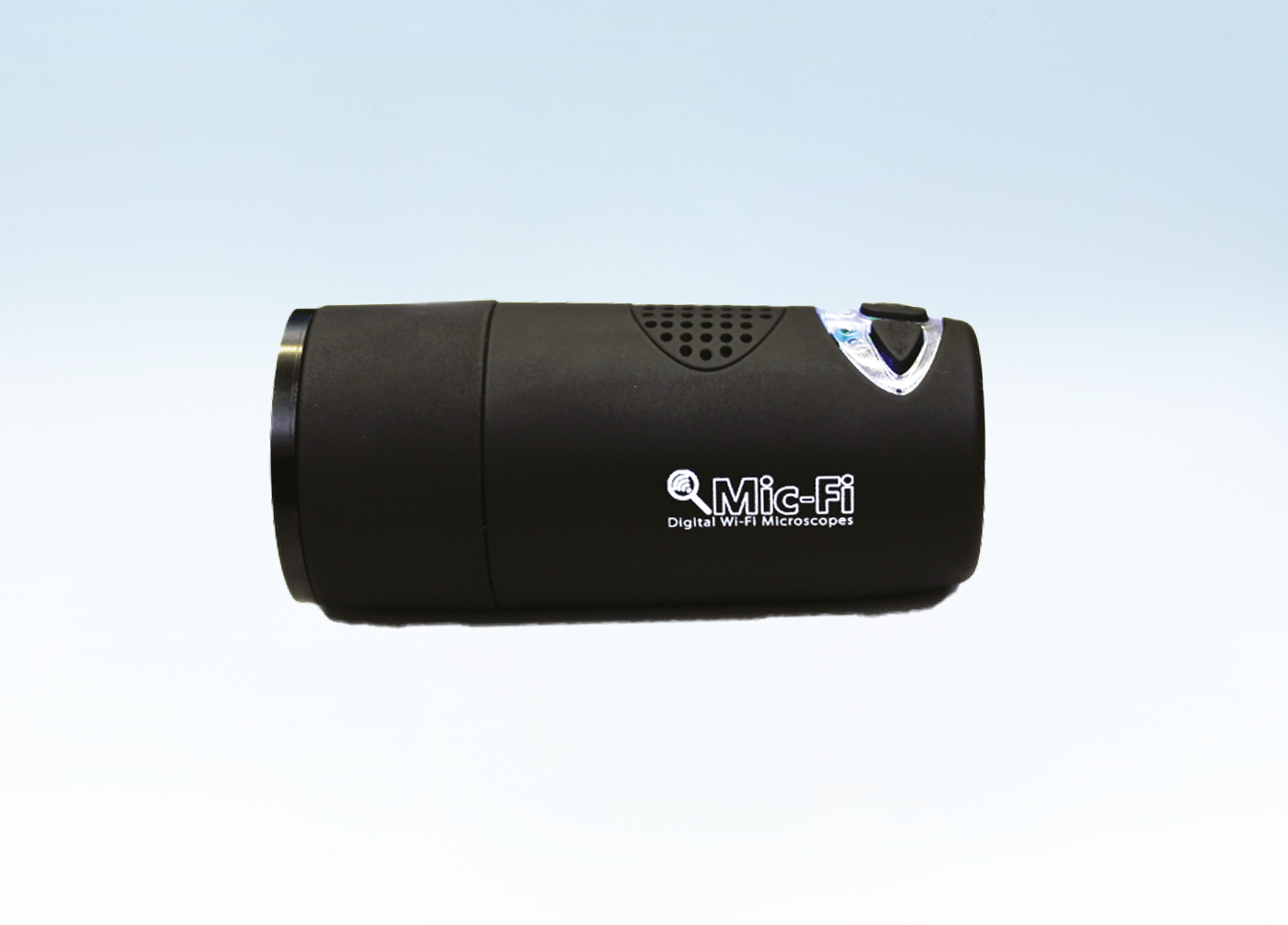

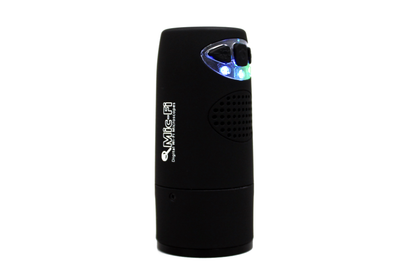

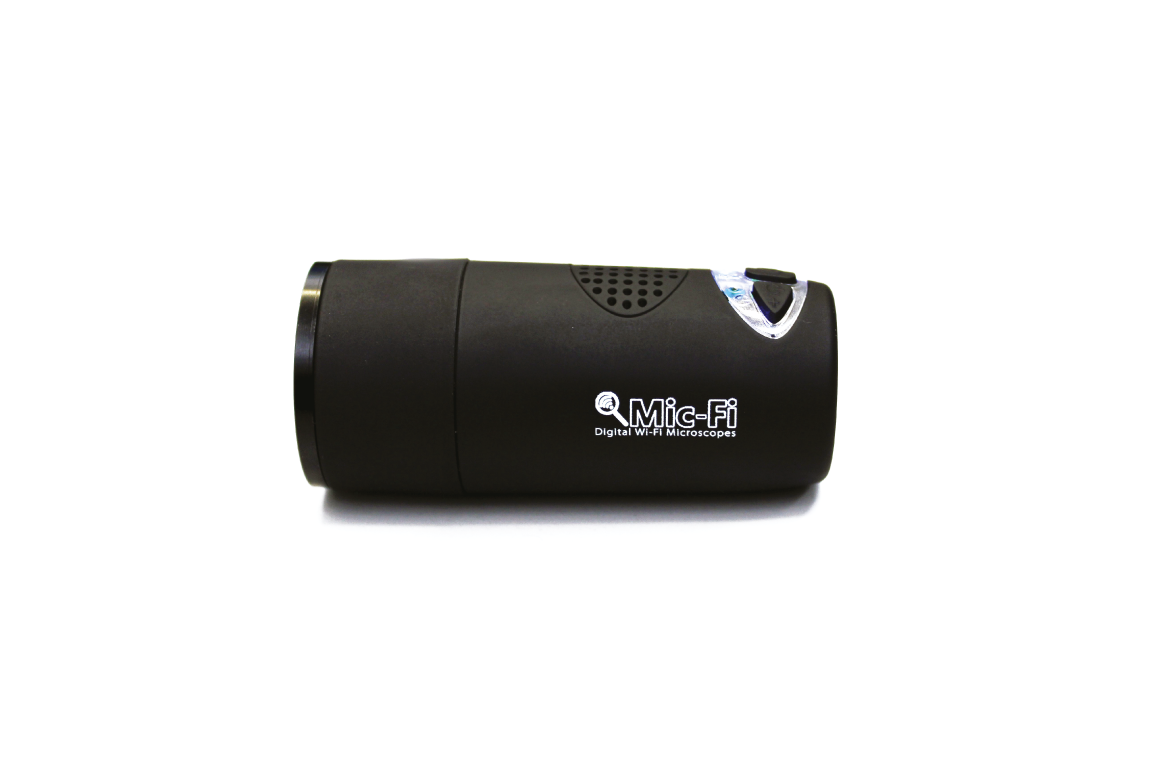

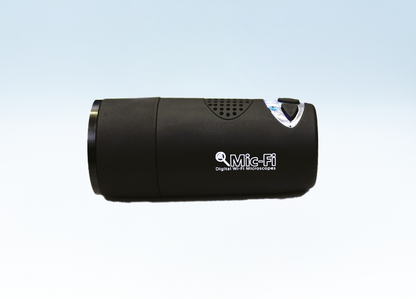

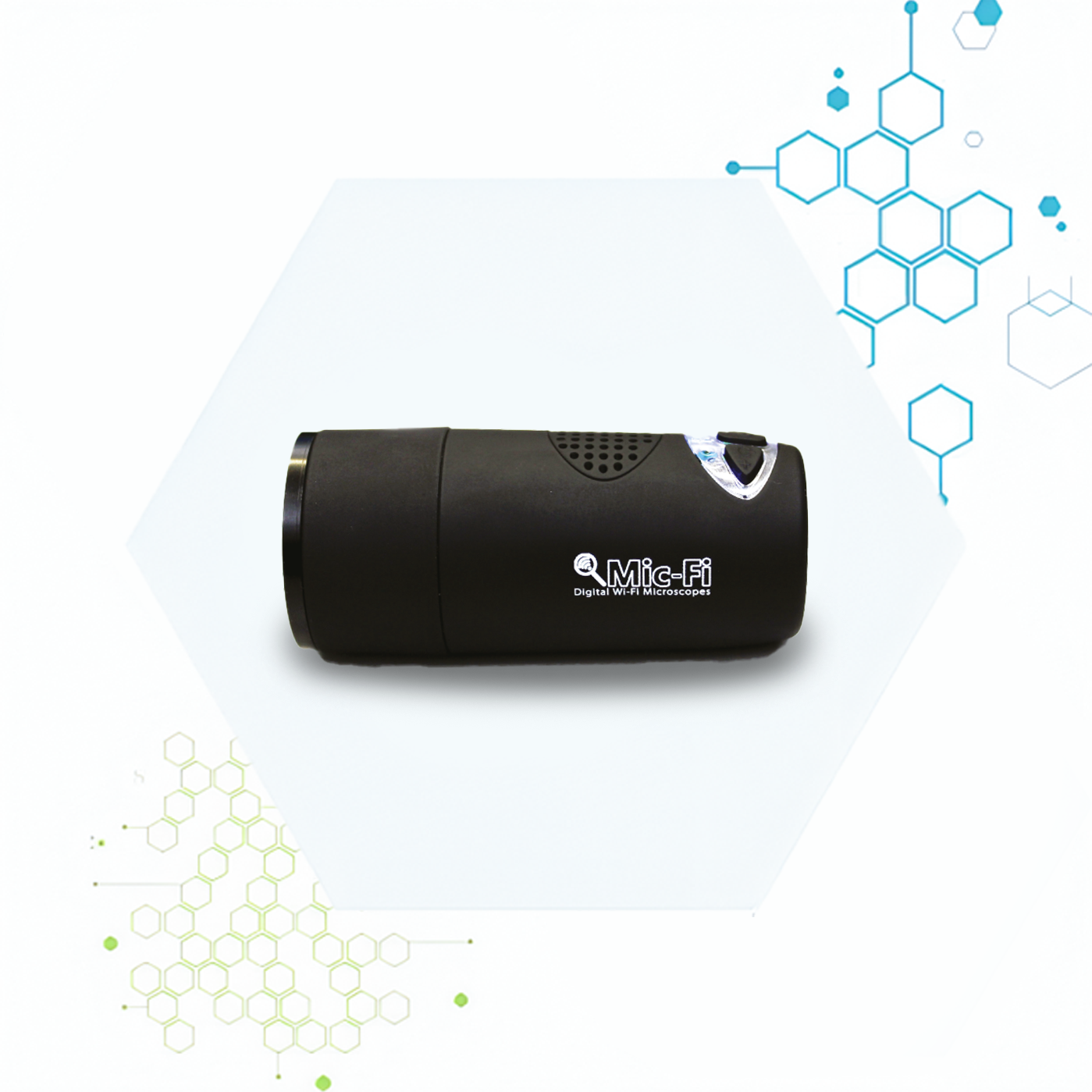

Wi-Fi – USB Digital CAMERA

Wi-Fi – USB Digital CAMERA

SKU:AE-CAM

AE-CAM is a Wi-Fi camera with C-mount and allows to digitalize the image on tablets, smartphones and Pc using dedicaded Apps and Softwares. AE-CAM is compatible with all optical devices such as microscopes, endoscopes, c-mount lenses etc.

Download Brochure

Feature Details
Operating System Windows, OS X, IOS, Android
Battery Li-ion, Continuos working time appx. 2 hours
Wall Adaptor DC5.0V/1A Please use ONLY usb wall adaptors that are certified according the CE and/or FCC regulations
Device class according to EN 60601- 1:2006+A1:2012 Class II /td>
Applied parts according to EN 60601- 1:2006+A1:2012 Type B
Degree of protection (EN 60529:1991+A2:2013) IP40 (protected against solids >1mm and wire access, not liquid ingress)
Mode of Work Continuous
02 : 07 : 48 : 10
Days   Hours   Mins   Sec
Notify Me View full details
  • Analytics dashboard icon

    USB Features

    • Photo and Video Resolution: 1.3Mpixel — 1280x1024, 640x480, 320x240

    • Frame Rate: 15fps (1280x1024), 30fps (640x480), 320x240

    • Image Format: .bmp, .jpg

    • PC Interface: USB 2.0

    • Mini USB Cable: 1.2m

  • Website photo gallery icon

    Camera Features

    • Camera:Color CMOS Camera

    • Sensor: 1/4" CMOS

    • Optic:

      Exposure: auto

      Gamma: auto

      White balance: auto

      Reference: auto

  • Product collection menu icon

    Software & App

    • SOFTWARE

    Mic-Fi per Windows and MAC

    • APP

    Mic-Fi Medical per iOS Tablet

    Mic-Fi per iOS Smartphone

    Mic-Fi Med Plus per Android Tablet & Smartphone

  • Secure packaging for veterinary equipment icon

    PACKAGE

    • n. 1 Mic-Fi Camera with USB cable

    • n. 1 USB AC Adapter 5.0V/1A

    • n. 1 quick guide

    • n. 1 Ruler

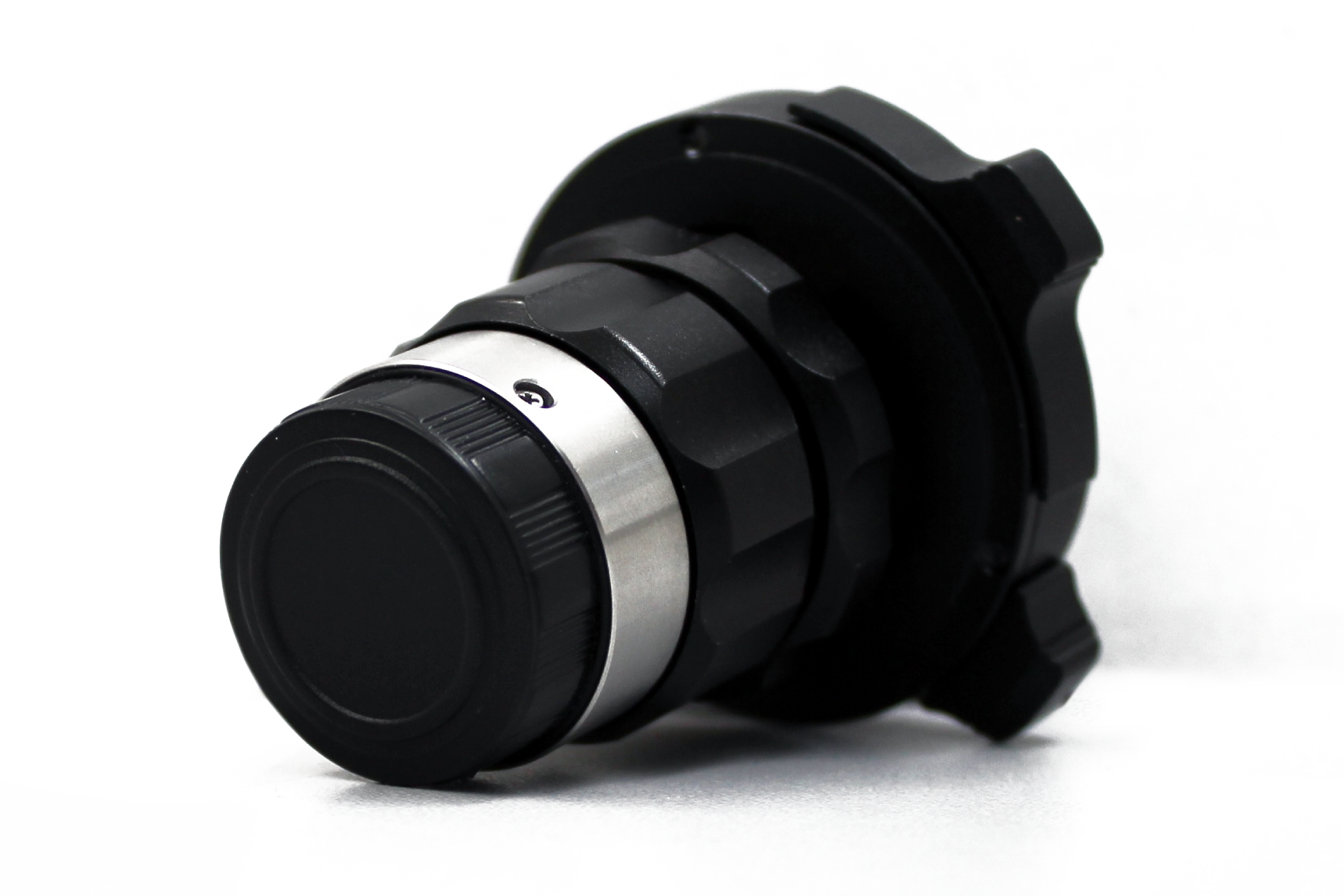

    • n. 1 MICFIEYERING

    • n. 1 PEN DRIVE with user manual and software per Windows and MAC

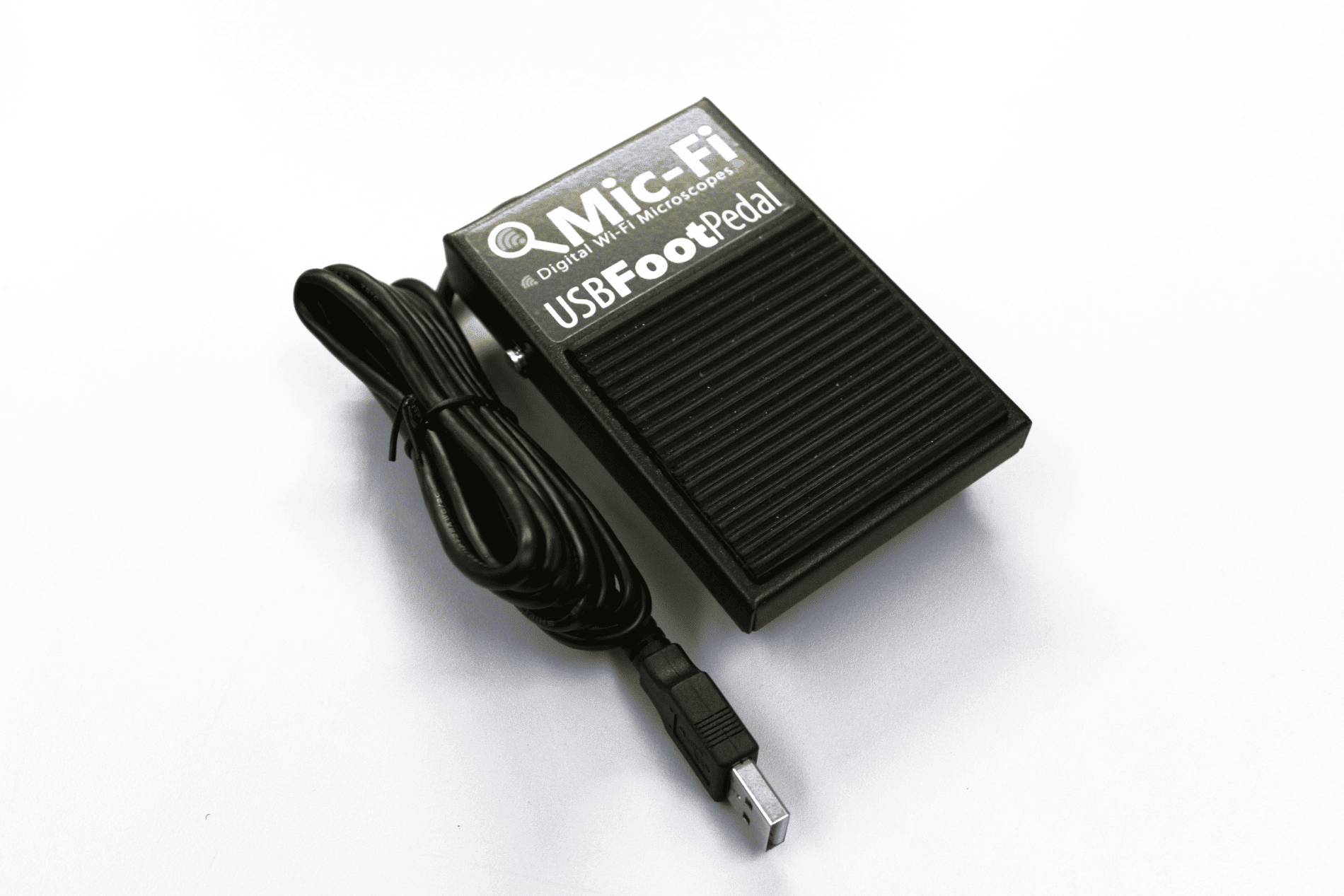

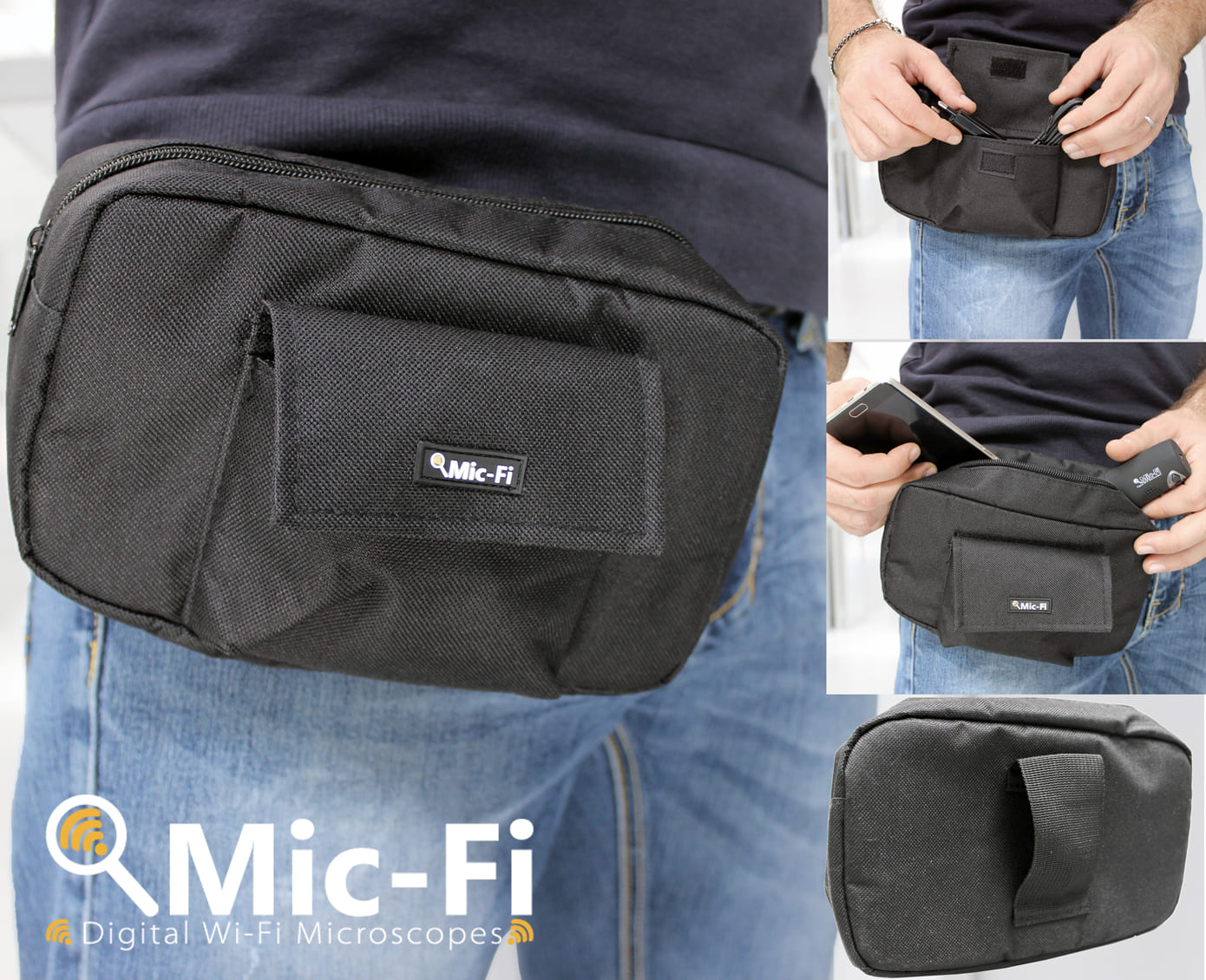

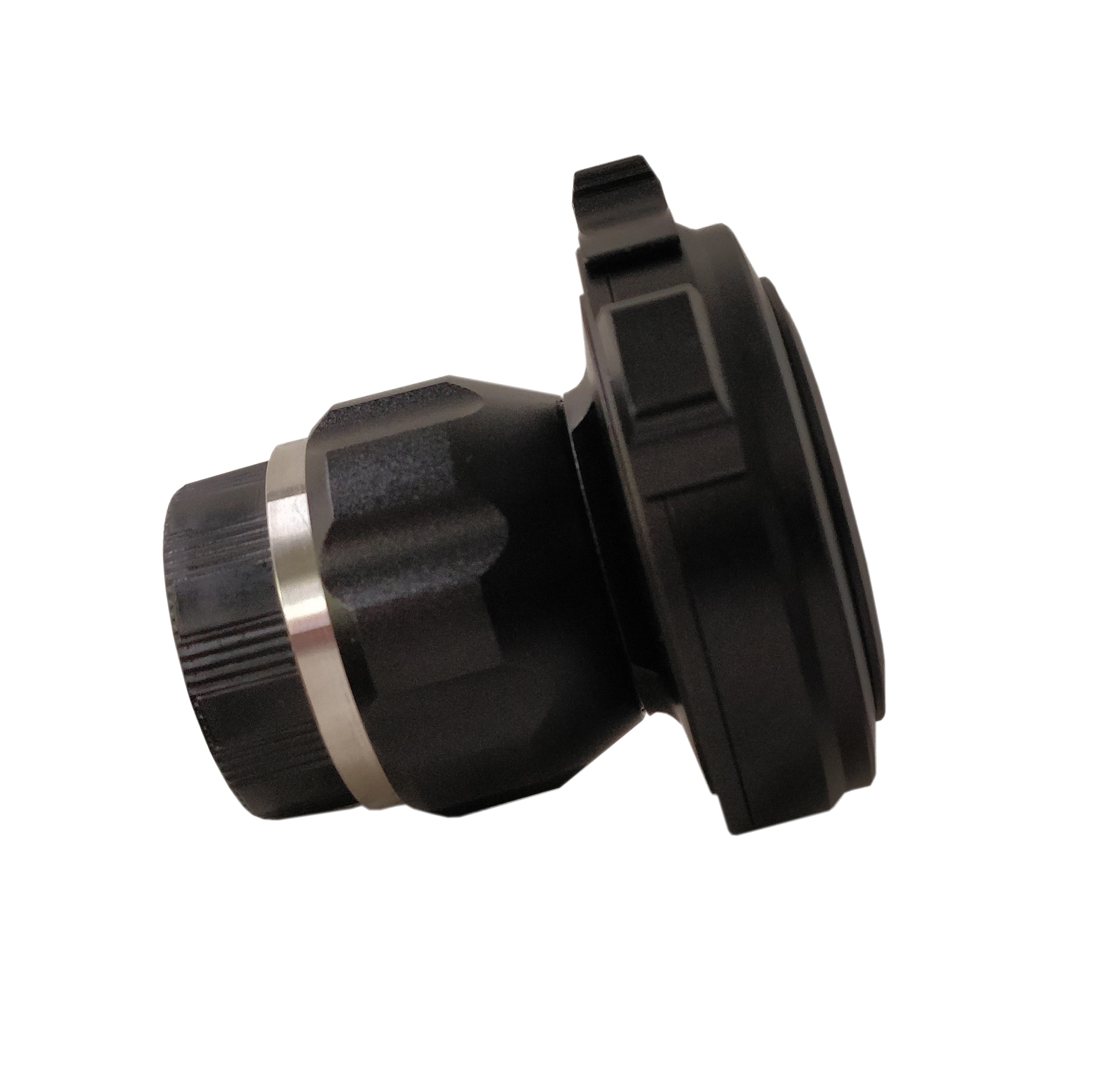

Accessories

x
Veterinary digital inspection microscope

Wi-Fi Trasmission Features

Feature & Details
Wi-Fi Standard: IEEE 802.11 b/g/n
Wi-Fi Wireles Transmission Distance: Upto 5m
Photo and Video Resolution: 1.3MPixel – 320(H)x240(V), 640(H)x480(V), 1280(H)x1024(V)
Frame Rate: 15fps – 1280x1024, 30fps – 640x480, 320x240
Wi-Fi Transmit Power: 11n HT40 MCS7: +13dBm, 11bCCK: +18dBm, 11gOFDM: +15dBm
Data Rate: 802.11n: up to 150Mbps,802.11b: 1, 2, 5,5, 11Mbps,802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Frequency Range: 2.400 ÷ 2.4835 GHz
Power Consumption: Max 2.5W
Frame Rate: 10 ÷ 30fps
